DDS Function Signal Generator Module Sine Square Sawtooth Triangle Wave - intl

DDS Function Signal Generator Module Sine Square Sawtooth Triangle Wave - intl

426.000 ₫
  • Operating voltage: DC 7V - 9V
  • Size: 100 x 80mm (Length x width)
  • Template thickness: 2mm
  • DDS frequency range: 1HZ-65534Hz
  • 1602 LCD screen
  • ntuitive 5 keyboard
  • Section into the value: 1,10,100,1000,10000 Hz
  • Offset: 0.5pp-5Vpp
  • Hỏi đáp qua Facebook

    +1
    Share
    Pin
    Like
    Send
    Share
    Send

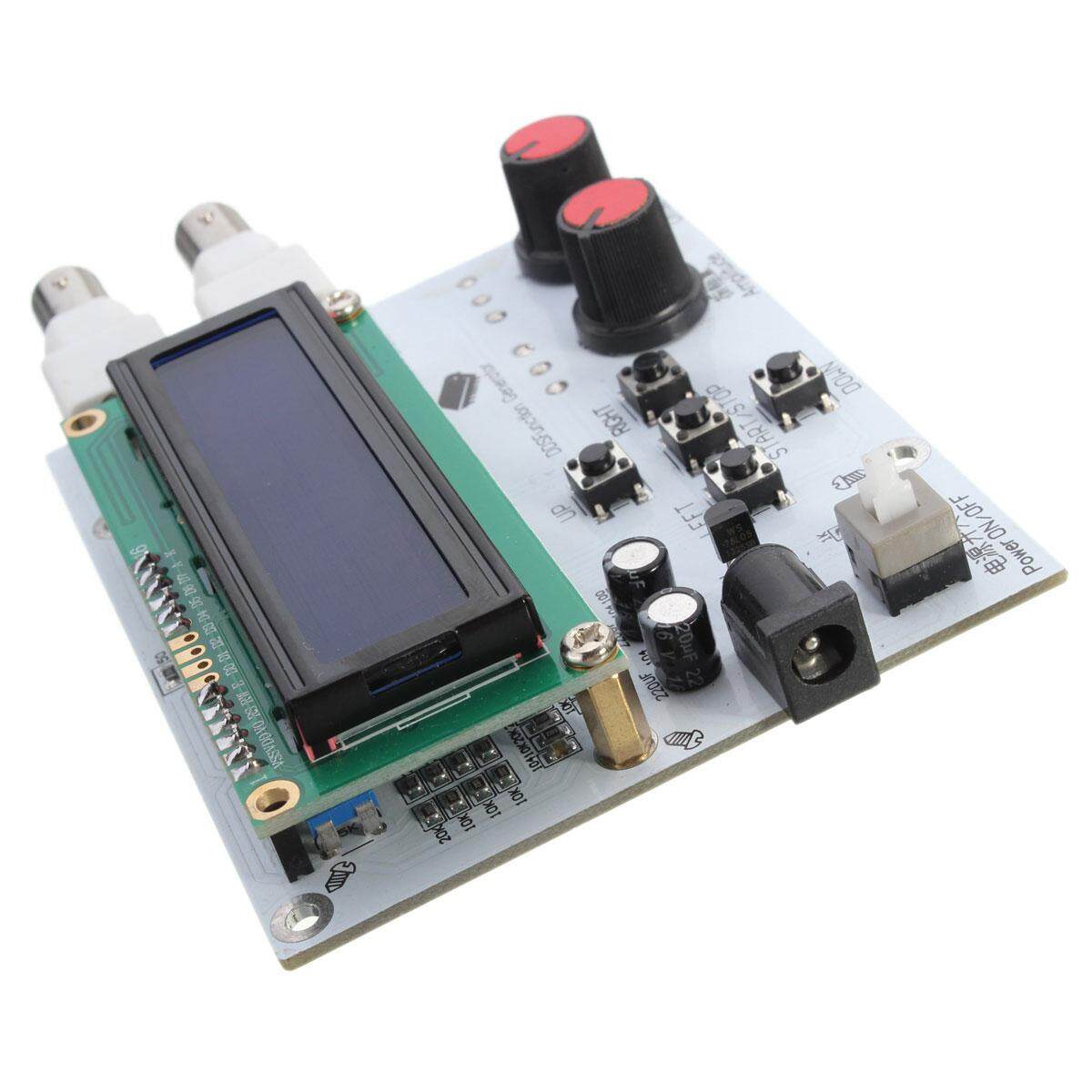

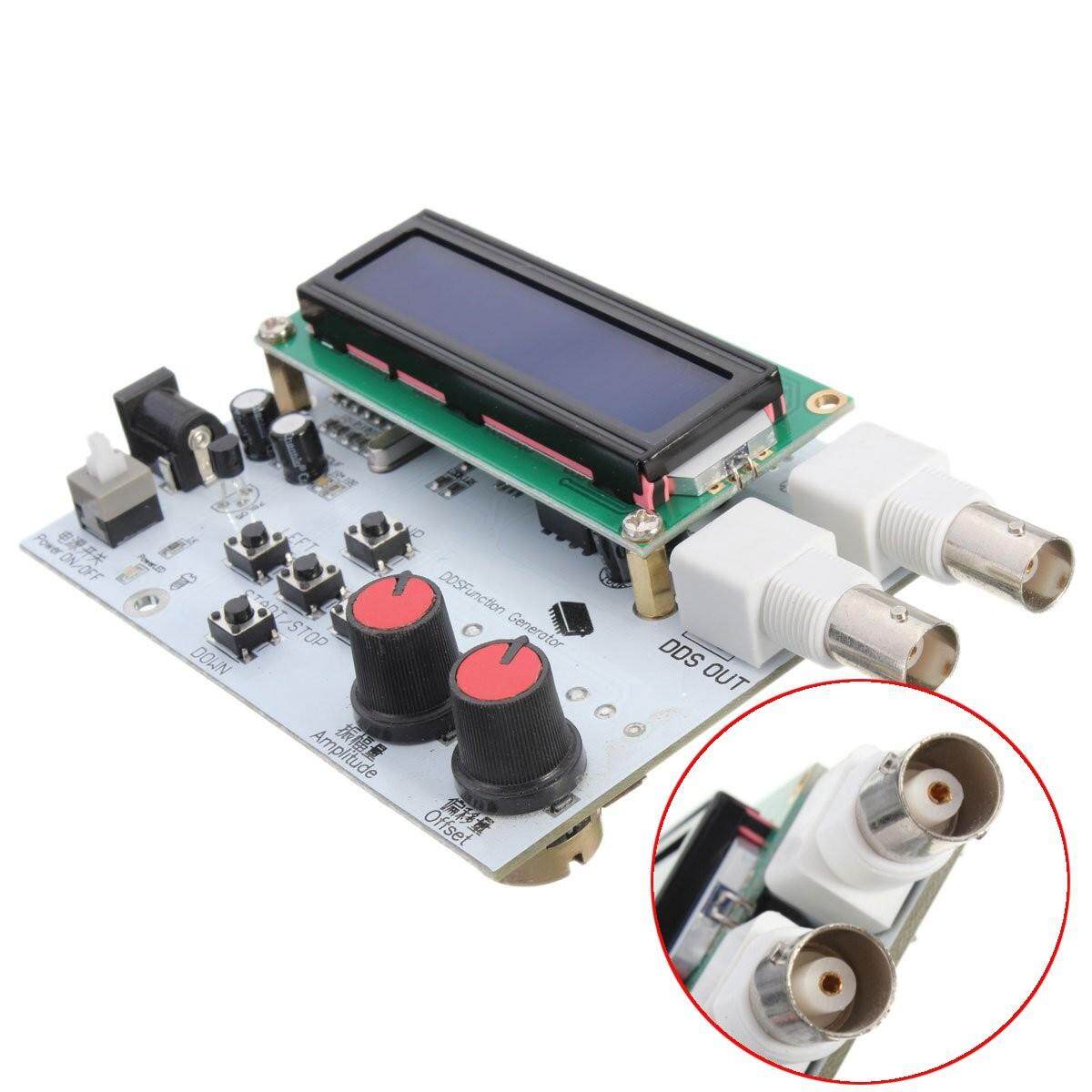

    Function (waveform) signal generator. Can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, and pulse wave, etc.) signal, the frequency range from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of a very wide range of applications.DDS Function Signal Generator Module Sine Square Sawtooth Triangle Wave

    Description:
    Function (waveform) signal generator. Can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, and pulse wave, etc.) signal, the frequency range from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of a very wide range of applications.
    Specification:
    • Operating voltage: DC 7V - 9V

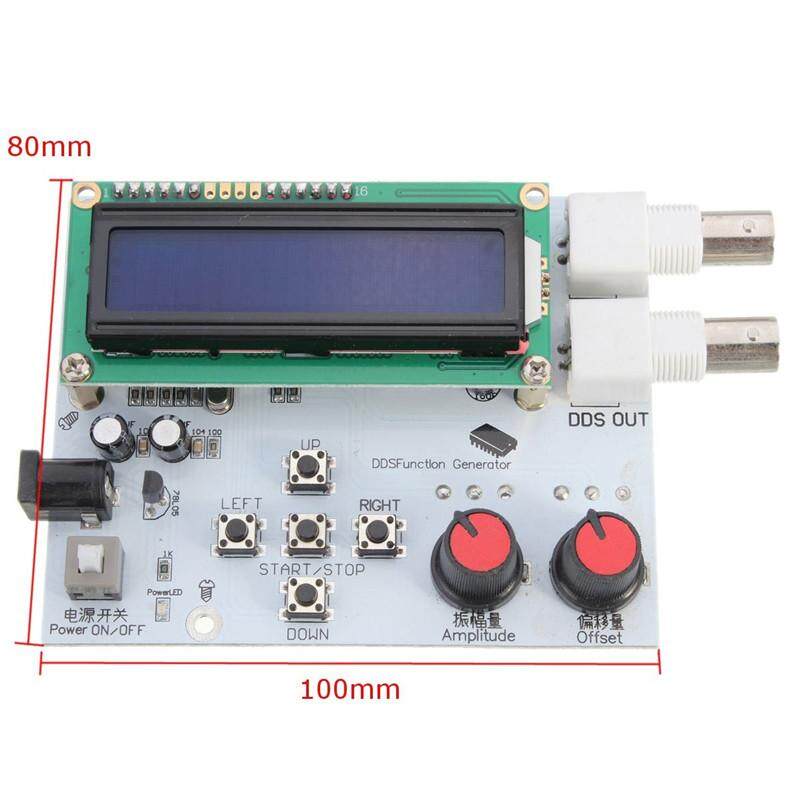

    • Size: 100 x 80mm (Length x width)
    • Template thickness: 2mm
    • DDS frequency range: 1HZ-65534Hz
    • High-speed frequency (HS) Square wave: 1MHz/2MHz/4MHz/8MHz

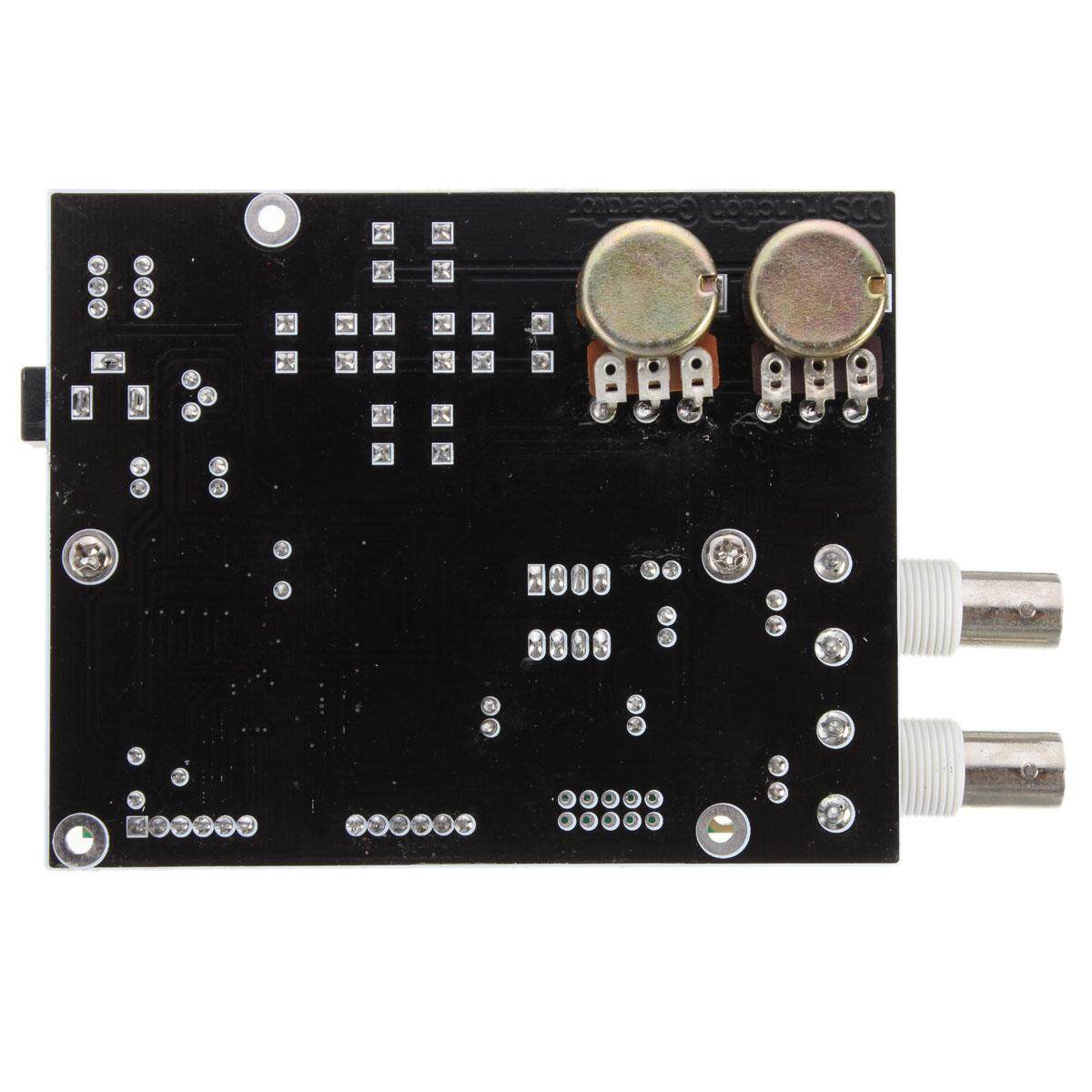

    • DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers

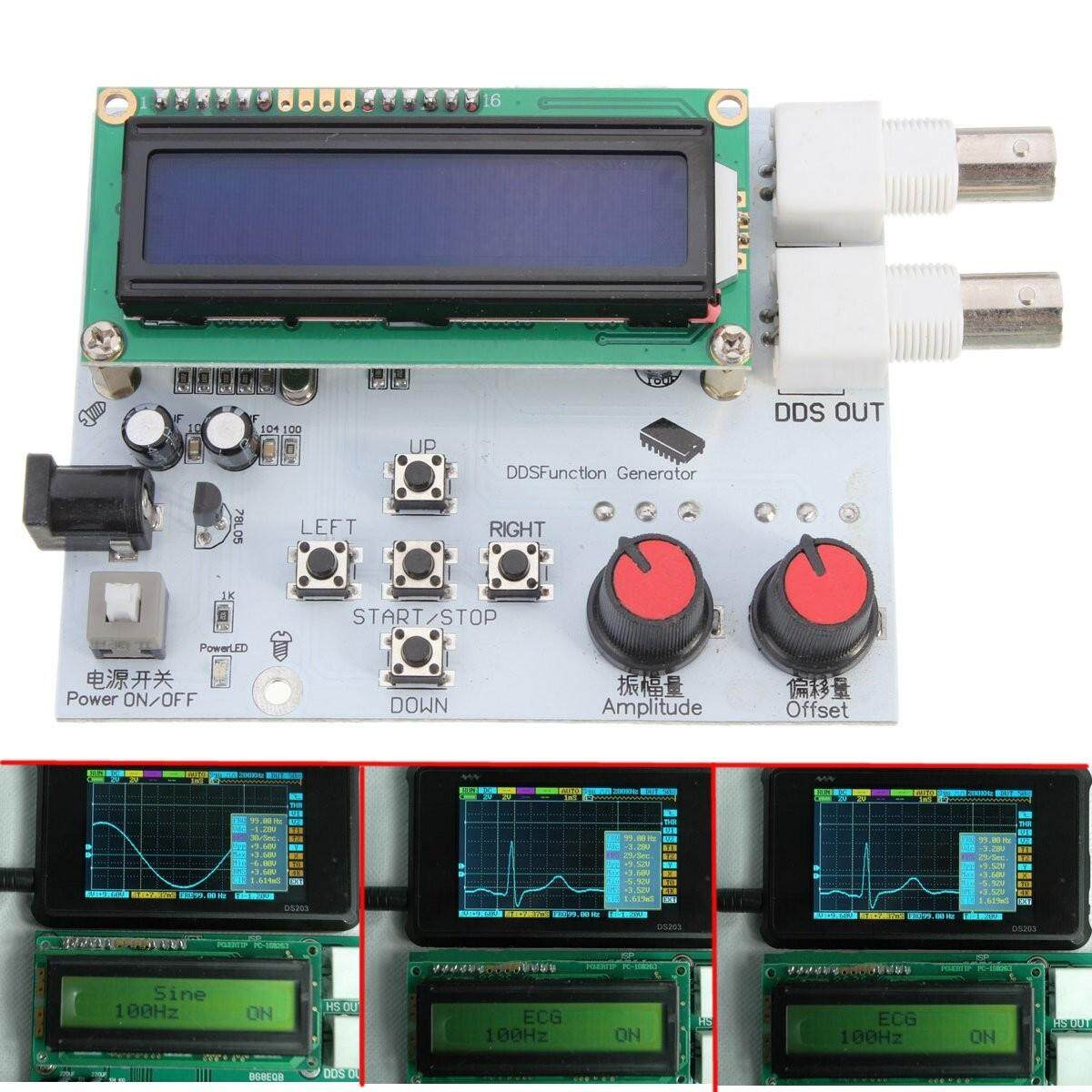

    • DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave and noise wave
    • 1602 LCD screen
    • Intuitive 5 keyboard
    • Section into the value: 1,10,100,1000,10000 Hz
    • The power automatically restores the last used configuration
    • Offset: 0.5pp-5Vpp
    • Amplitude amount: 0.5Vpp-14Vpp
    • Output Impedance: 20-200 ohms
    Buttons main functions:
    The UP output waveform select
    The DOWN output waveform select
    LEFT output frequency -
    RIGHT output frequency +
    STOP / RUN the output stop / start
    Package included:
    1 x DDS Function Signal Generator Module










    Đặc tính sản phẩm

    • Thương hiệu : Not Specified
    • SKU : 232390856_VNAMZ-295317816
    • Dòng sản phẩm : Audew-SKU278576
    • Loại bảo hành : No Warranty
